Studies of the first and second stages of short dams in Fereydounshahr County (Nahzatabad Dam)

1572696603_nehzat1
1572697070_nehzat2
1573281300_11
1572696603_nehzat1
1572697070_nehzat2
1573281300_11

Client: Isfahan Provincial Regional Water Company

Contract start date: 2007-03-14

Brief description:

The purpose of constructing the Nehzatabad Reservoir Dam is to store water and control the floods in the region, which ultimately stores these floods for optimal use during droughts and dry seasons. By storing and storing runoff, the irrigated agricultural lands of the region will be significantly improved and the existing gardens will be developed. In addition, the rain-fed agricultural lands of the region will be converted to irrigated lands, and a significant change will be achieved in the development of agriculture and the prosperity of livestock farming.

The construction site of the Nehzatabad Dam is located 13 kilometers south of Fereydounshahr County. Access to the desired area is possible via the Isfahan-Freydounshahr asphalt road and then via the Fereydounshahr-Sibak-Nehzatabad asphalt road, which is 13 kilometers long, to the village of Nehzatabad, and then by taking a dirt road about 1.5 kilometers long to the left side of the axis. Geographically, the construction site of the Nahzat Abad Dam is located at latitude 32°52′1.2″ and longitude 50°7′6″.

Project Technical Specifications:

Basin area to dam site: 18.8 km²
Average basin elevation: 2819 m
Rainfall
Average basin: 552 mm
Average annual yield: 3.5 mm m
Area covered: 400 hectares

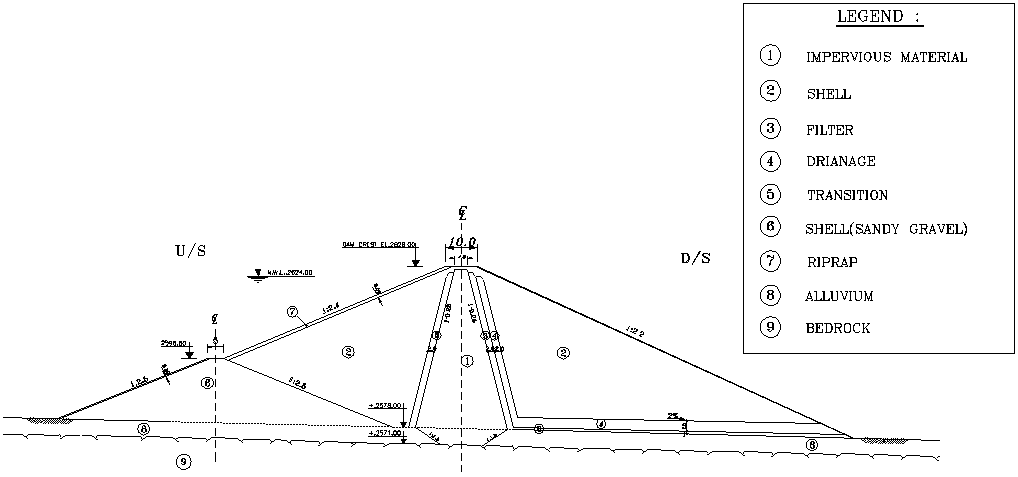

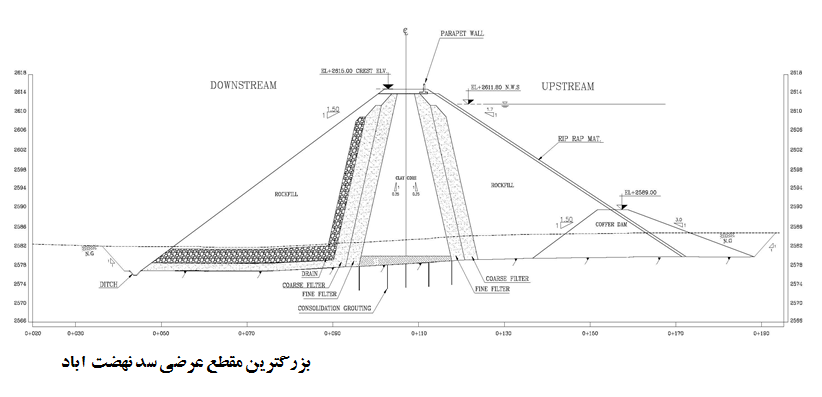

Dam type: Gravel with clay core
Dam crest level: 2615 meters above sea level
Height from riverbed: 32 meters
Slope of the body: 1.70H:1.0V
Slope of the body: 1.50H:1.0V
Dam crest length: 386 meters
Dam crest width: 10 meters
Total body volume: 508,000 cubic meters
Normal reservoir volume: 2.5 m³
Normal level: 2611.8

Spillway type: Lateral
Spillway width: 8 meters
Spillway length: 220 meters
